About This Carrier 1

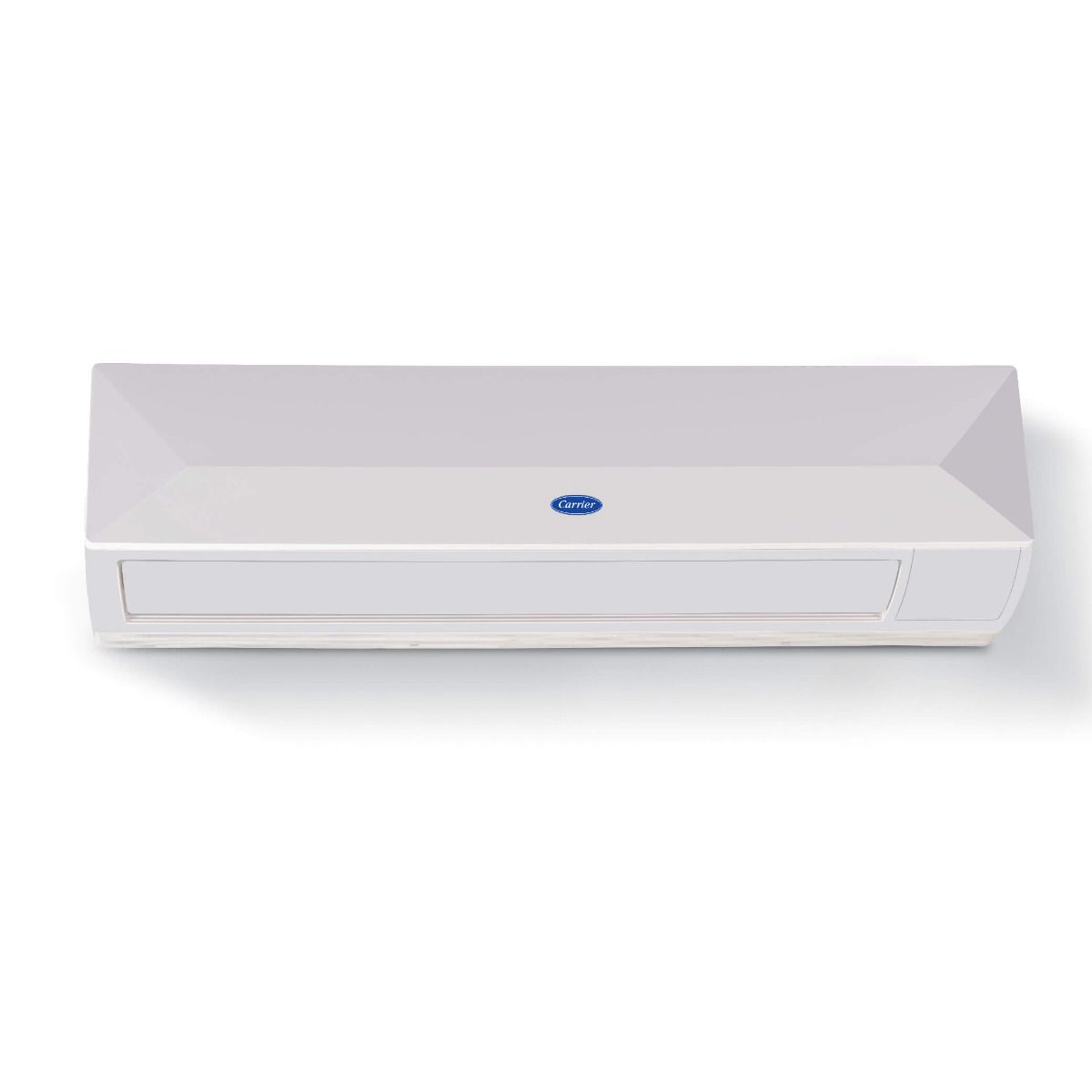

The XTREME EDGE EX Split AC is proudly made and designed in India, embodying the reliability and craftsmanship of Indian manufacturing.
Presenting our Xtreme Edge Ex Fixed Speed. With its 3-star energy rating, the Split AC is an efficient choice for optimal cooling needs. Available in 1.0TR, 1.5TR variant, select the perfect capacity that suits your space.

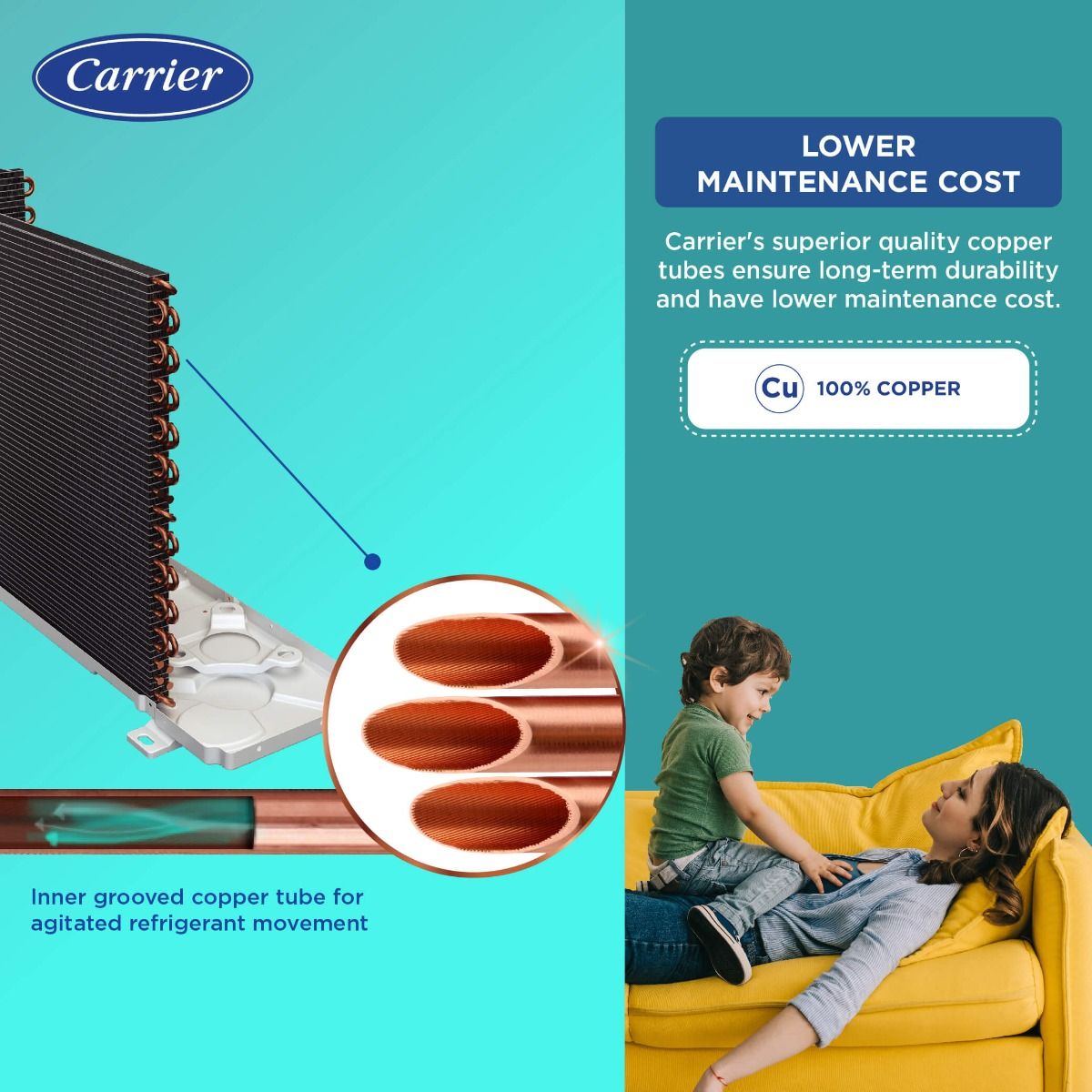

100% Copper Carrier 1: –
With 100% Copper coils, the XTREME EDGE EX Split AC guarantees enhanced durability and efficient heat transfer, resulting in more effective cooling.
Hidden Display Carrier 1: –
It adds a touch of elegance to the space, offering a sleek and minimalistic design that seamlessly blends with the interior.
Manufacturer Warranty Carrier 1: –
1 Year Warranty on Product and 5 Years Warranty on Compressor,
Not Covered in Warranty Carrier 1: –
The air filter and front grill are excluded from warranty coverage. Installation and demonstration are not included in the warranty. External accessories are not covered. The product must be used according to the instructions in the manual. Defects from improper use, as determined by company personnel, are not included. Modifications or alterations to the electrical circuitry or physical construction are not covered. Conditions at the site that do not comply with recommended operating conditions of the machine are not covered. Defects caused by uncontrollable factors such as lightning, abnormal voltages, acts of God, or during transit to service center or the purchaser’s home are not covered.
General of Carrier 1
| Tonnage Category(TR) | 1 |
| Rated Capacity* | 3600 |
| Nominal Cooling/Heating Power Input*(Watts) | 940 |
| Annual Power Consumption(KWH) | 727.66 |
| LABEL PERIOD | 1st July,2022 - 31st Dec,2024 |
| BEE Star Rating*** | 3 Star |
| Rated AMP(Amp) | 4.1 |
| ISEER Value(W/W) | 3.83 |
| Rated Power Supply(V-Ph-Hz) | 230 - 1 - 50 |
| Net Weight(Kgs(IDU/ODU)) | 10 / 28 |
| Indoor Noise Level(H/M/L)(db) | 40/38/32 |
| Fan Motor(Indoor) | 4 |
| With Connecting Kit Pipe | Yes |
| VALVE SIZE | 1/2" x 1/4" |

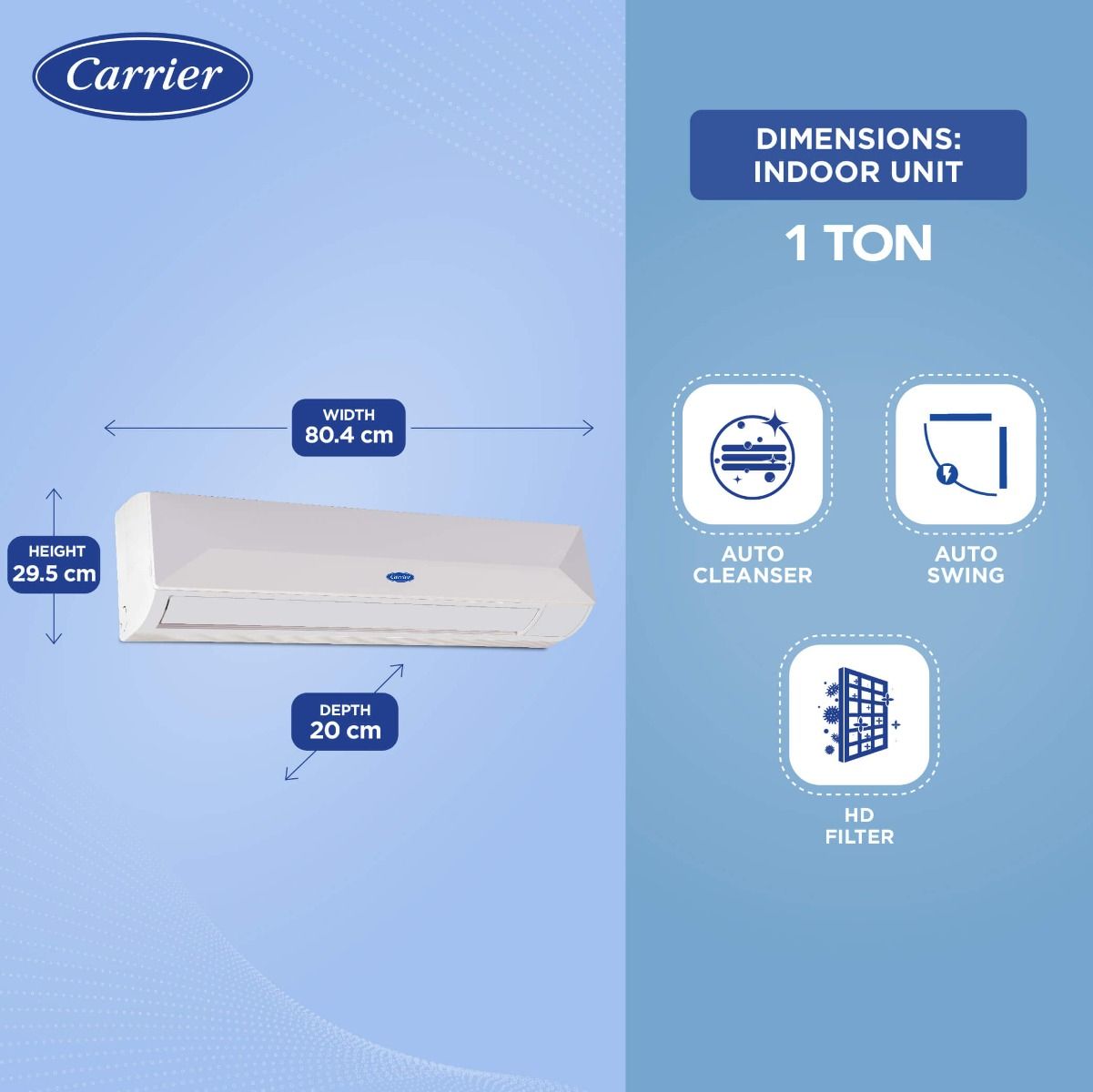

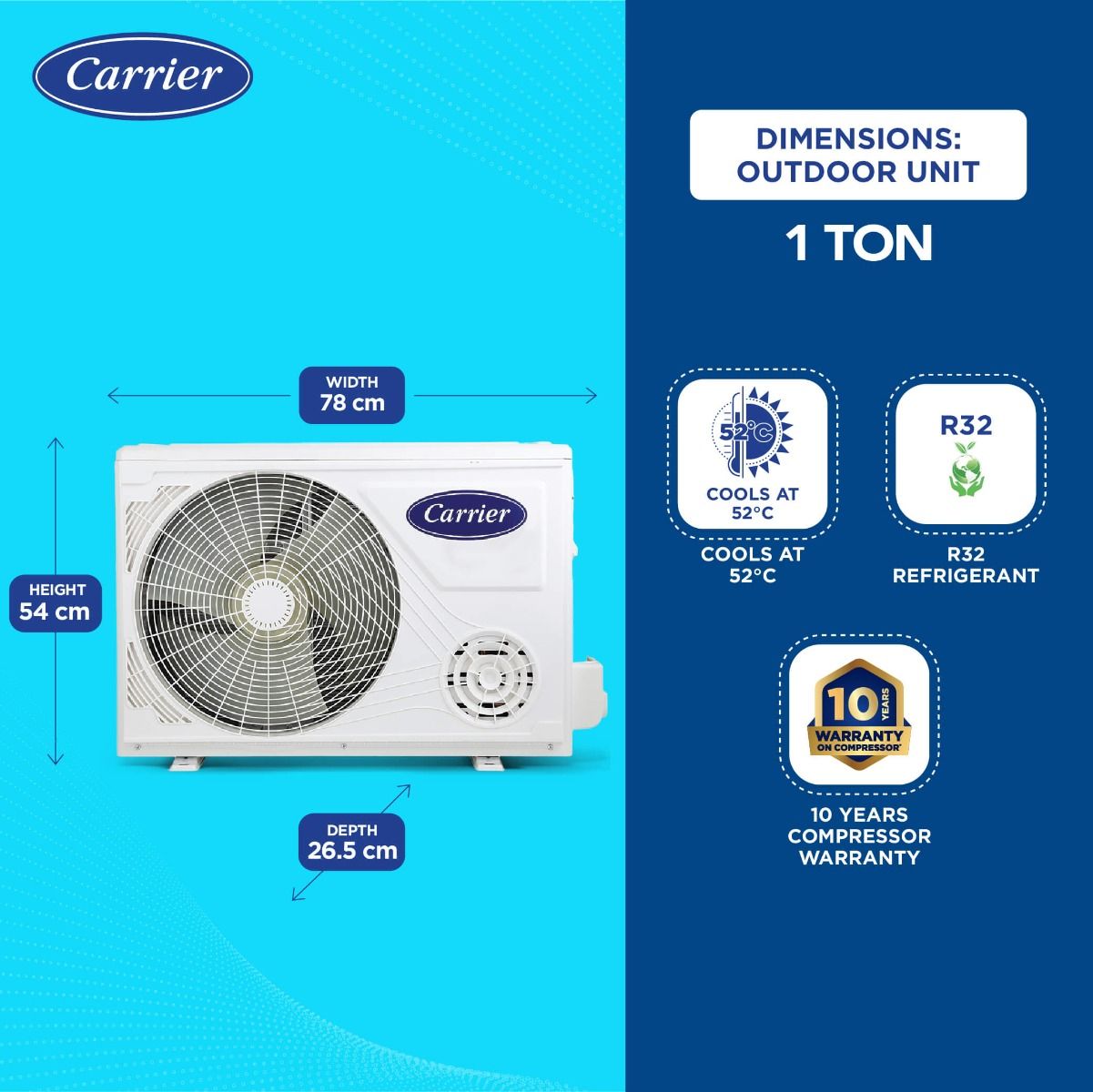

Dimension
| Outdoor Unit Width(mm) | 780 |
| Indoor Unit Height(mm) | 295 |
| Indoor Unit Width(mm) | 804 |
| Indoor Unit Depth(mm) | 200 |
| Outdoor Unit Height(mm) | 540 |
| Outdoor Unit Depth(mm) | 200 |
| OUTDOOR UNIT (DEPTH-with Grill) (mm) | 265 |
Filters
| HD Filter | Yes |
| Room Size * | Very Small(90 Sqft & below) |
| PM 2.5 Micron Filter(3M Brand) | No |
| PM 2.5 Micron Filter | No |
| Air Cleaner(Composite Air Freshing Mesh) | No |
| Charcoal/Active Carbon Filter | No |
| Zeolite Filter | No |
| Vitamin C Filter | No |
| Electrostatic Filter | No |
| Dust Filter | No |
| AG+ Nano Filter | No |
| Hyper Protective Filter | No |
| (AVG) ANTIVIRAL GUARD COATED FILTER | No |
| Electrostatic Dust Filter | No |
Features
| Manual On/Off Button | Yes |
| Refrigerant | R32 |
| FLEXICOOL (4 in 1) | No |
| Air Direction Control | Yes |
| SUMMER CHILL | No |
| 4-Way swing | No |
| ANTI CORROSION COATING (BLUE) | Evap- Hair pin in side |
| Security Lock | No |
| FLEXICOOL (6 in 1) | No |
| IDU Temp Display | Hidden Display |
| INSTA COOL | No |
| Remote Control Type | LCD Remote |
| Remote Backlit | No |
| ECO function | No |
| Auto Off Timer | Yes |
| SILENT | No |
| Auto On Timer | Yes |
| Economic Sleep Mode | Yes |
| Refrigerant Leakage Detector | No |
| Louver Position Memory | Yes |
| Dry Mode | Yes |
| Amazon Alexa(Optional) | No |
| LED | No |
| Auto Fan Speed | Yes |
| X-LED VBL | No |
| Google Action(Optional) | No |
| Intelligent CRF Alert | No |
| Refrigerant Cooling PCB | No |
| Auto Cleanser(Self Clean) | Yes |
| Follow Me | No |
| Flexicool( 50% , 75% , 100% Power) | No |
| Auto Mode | Yes |
| Auto Restart | Yes |
| Temp Display On/Off | No |
| Turbo Mode | Yes |
| Stabilizer Free Operation(Even @48°C) | No |
| Double Drain(Easy Installation) | Yes |
| My Mode(Favourite Mode) | No |
| High Ambient Working(at 230V rated) | 52°C |
| Sleep Mode | No |
| IDU Display On/Off | Yes |
Manufacturer Information
| Manufactured by | Carrier Midea India Private Limited 1st Floor, Pearl Tower, Plot No - 51, Sector - 32, Gurugram, Haryana 122001 |
| Country of origin | India |
| Marketed by | Carrier Midea India Private Limited 1st Floor, Pearl Tower, Plot No - 51, Sector - 32, Gurugram, Haryana 122001 |
| Contact us | For All Product Related Complaints/assistance, please contact Grievance Officer (Consumer), Carrier Midea India Private Limited 1st Floor, Pearl Tower, Plot No - 51, Sector - 32, Gurugram, Haryana 122001, Email us at: Carriercare@carriermidea.com |
